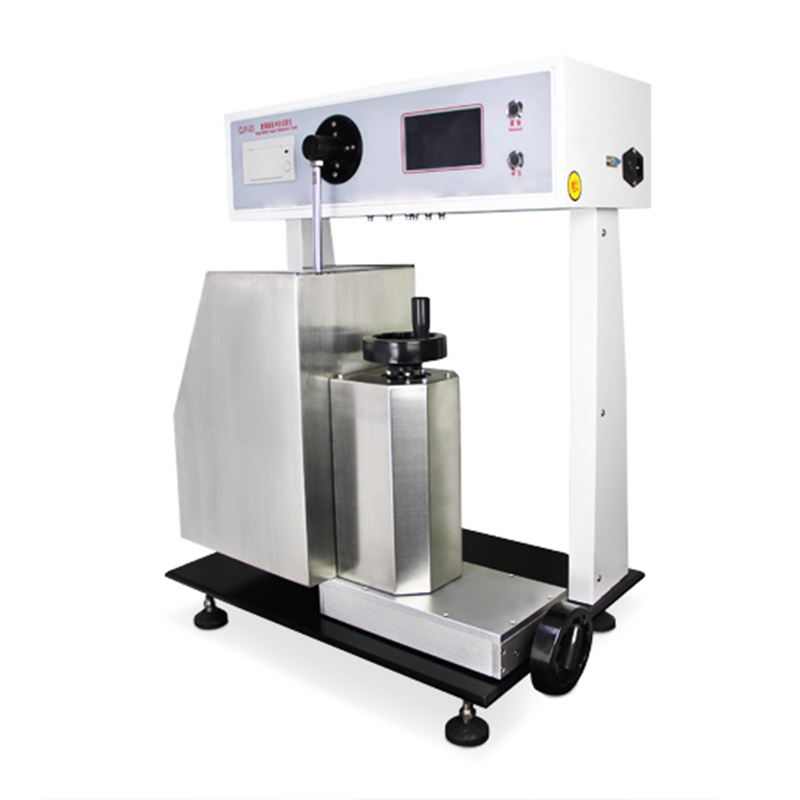

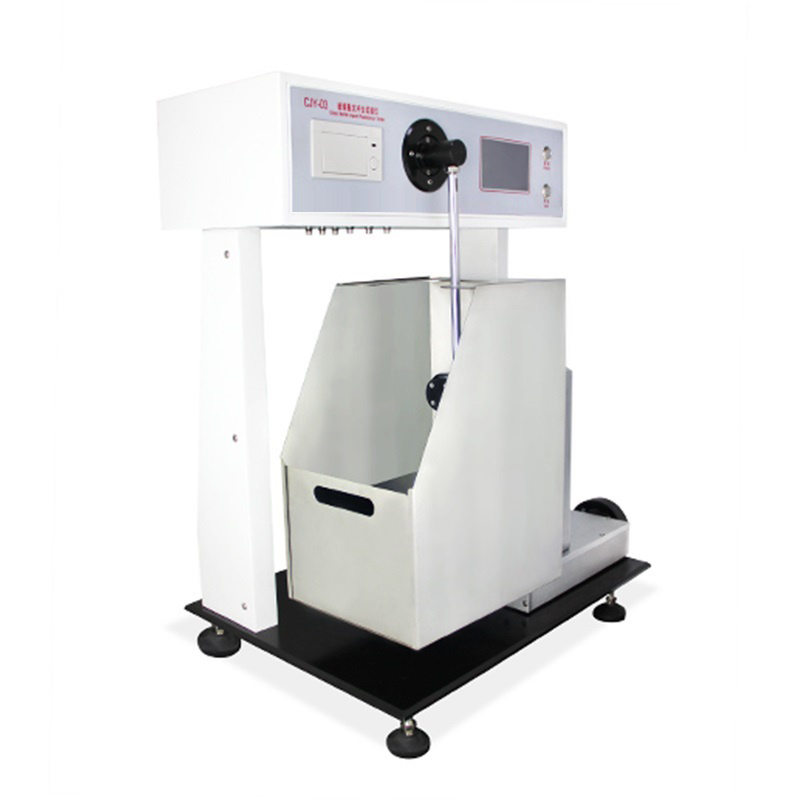

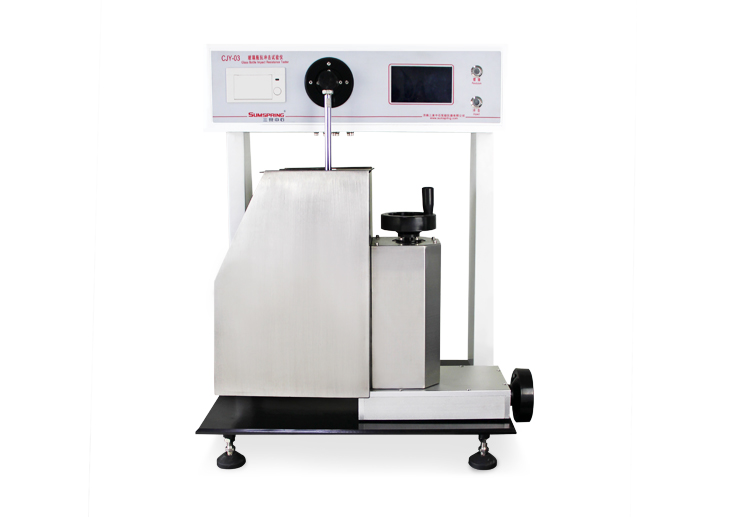

Glass Bottle Impact Resistance Tester is suitable for test impact resistance for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottle, glass containers and other kinds of glass bottles, is the necessary testing instruments for quality inspection institutions, breweries, glass manufacturing enterprises etc..

Test principle

According to the principle of energy conversion, the pendulum impact energy to glass bottle  is determined by the potential energy of the pendulum. When the angle of the pendulum is a certain value,pendulum potential energy is a certain value, the impact of the pendulum on the glass bottle is a certain value.

Application

Product	Name	Application
	Glass bottle	For impact resistance test for all kinds of beer bottles, beverage bottles and all kinds of glass bottles.
	Infusion bottle	For impact test, the volume of glass bottles, such as infusion bottles, etc..
	Vials	Glass bottle impact resistance tester is used for test impact resistance for mold resistant bottle, antibiotic bottle

Technical Feature

★LCD touch screen,can set the impact energy,impact angle and other indicators
★Electronic measurement mode,accuracy is 0.01J
★Pendulum pneumatic clamping and release,avoid human error
★Adjust the impact position according to the sample size
★The system statistical test data automatically
★Fast print ,test results permanent preservation

Main Specifications

Configuration

Glass bottle impact resistance tester host
